Best Engineering Practices for Pharmaceutical Water System Maintenance
To ensure that a pharmaceutical water system remains consistently qualified, it is essential to establish an appropriate maintenance strategy. This is not only a GMP requirement but also a sound operational practice. Maintenance intervals should be defined during the design phase based on the characteristics of individual components and then specified and controlled during commissioning and qualification.
System suppliers are a key source of information. They typically provide good recommendations on maintenance content and intervals. During the warranty period, the supplier is responsible for carrying out maintenance. However, procedures can also be developed based on in-house operational experience, especially for existing systems.
Manufacturer specifications are incorporated into the operating system and adjusted as necessary, with clear accountability. Companies installing a water system for the first time or with inexperienced personnel must be especially careful at this stage. Otherwise, they may encounter “classic” issues—such as system shutdown due to failure to add salt to the softener, leading to unsuccessful regeneration and hardness breakthrough.
In any case, an initial operation and maintenance (O&M) plan must be in place at the time of SAT (Site Acceptance Test) when responsibility is transferred from the engineering project team to the plant. Subsequent changes to responsibilities or maintenance intervals can be managed through a change control process, or, in the case of non-critical operations, updated via SOPs. GMP requires that any changes to maintenance of such critical systems be thoroughly documented. In this context, it is also important to verify whether and how alarms and their acknowledgments are recorded. In modern facilities, this is done automatically via audit trails. It is recommended to periodically review alarms, preferably in conjunction with trend reviews of recorded data and log entries.
First, what should be the basis for maintenance intervals? What is the empirical service life of individual components? This article shares key maintenance practices for several critical operations:

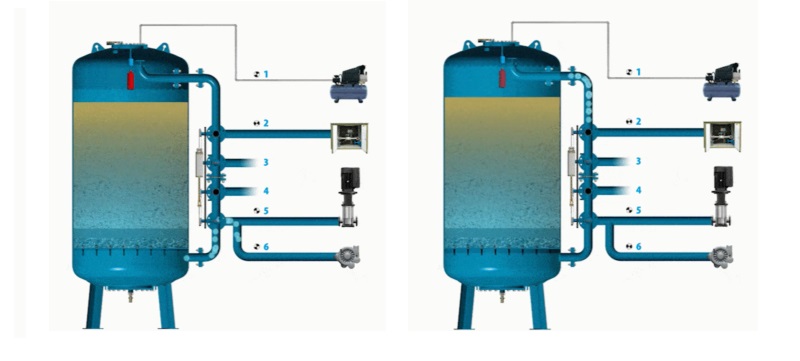

Backwashing of multi-media filters is a preventive maintenance measure. For example, monthly backwashing is common. A SMART engineering practice is to define a reasonable backwash cycle based on online hardness analyzers and SDI (Silt Density Index) readings. Of course, a redundant filter design can ensure continuous water supply during maintenance or backwashing of one unit.
Resin in softeners should be replaced every 3–5 years. This is considered a preventive measure against biofilm formation.

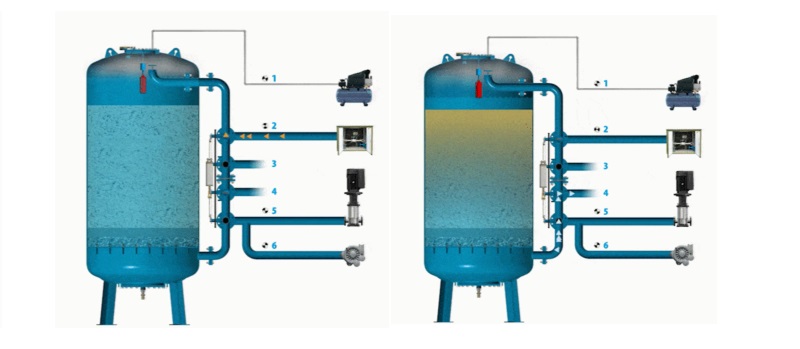

Operating status
Air-blowing state

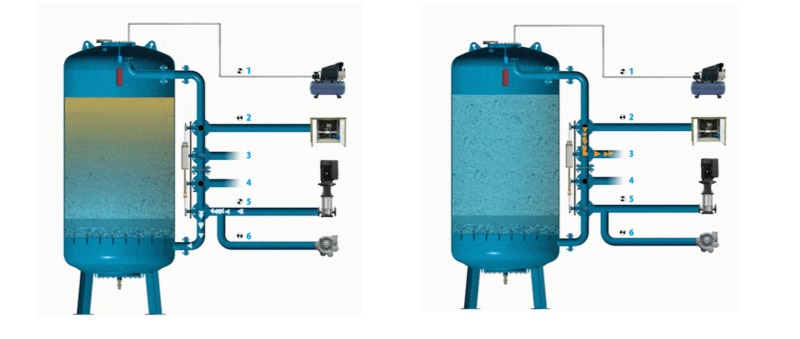

Backwash status
For RO membranes, ultrafiltration (UF), and EDI modules, preventive replacement should also be scheduled every 3–5 years. The actual service life depends heavily on system design and the frequency of hot water sanitization. The stated interval applies to systems where RO, EDI, and UF are hot-sanitized approximately every 3 months. More frequent hot sanitization will shorten the replacement interval. Startup/shutdown frequency and feedwater quality also play a significant role—modules or filters may need to be replaced more often under certain conditions.

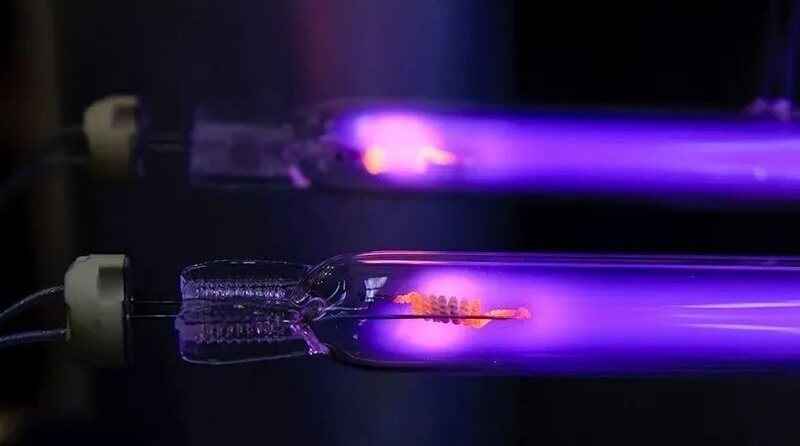

UV lamps used for ozone destruction are typically replaced after 8,000 hours of operation or 12 months. These values should be understood as baseline references; longer or shorter intervals may be justified based on risk assessment and quality approval.
Vent filters are mandatory components of water storage tanks. Their periodic replacement is also a regulatory focus. GMP requires pre- and post-replacement integrity testing. Most facilities replace vent filters every 6 months or annually.

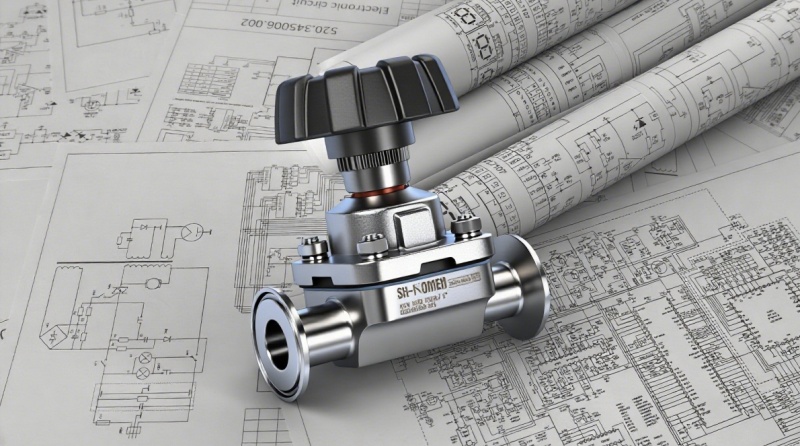

As a preventive measure, many companies replace rubber seals and diaphragms (typically EPDM or EPDM+PTFE) in diaphragm valves every 12 months. This is a one-size-fits-all approach. A SMARTer practice is to define replacement intervals based on:
l Valve actuation frequency,
l Whether the valve is normally open or closed, and
l Risk-based assessment.
Some companies use high-quality fluorinated stabilizing materials, allowing replacement intervals to be extended to 5 years or more.
For ambient-temperature purified water systems, hot water sanitization is typically performed once per week.
For water-for-injection (WFI) systems, hot water or superheated water sanitization has proven effective in controlling bioburden. Superheated water sanitization is commonly done every 3–6 months.
With technological advances, rapid microbial detection technologies can be considered. These are online monitoring tools promoted by the FDA. Using real-time data to trigger sanitization intervals is clearly more aligned with regulatory expectations.
The initial maintenance intervals are established during Performance Qualification (PQ). However, preventive maintenance frequencies must be justified with long-term operational data. Arbitrary intervals set during Operational Qualification (OQ) or SOP development are often inaccurate, as operating conditions vary between systems.
Therefore, adjustments to these intervals should be encouraged, and SOPs updated as needed. There may be many additional operational and maintenance considerations that can reduce the operating costs of pharmaceutical water systems. This not only improves efficiency but also helps establish best practices for the future.
