Water-for-Injection Manufacturing Processes – Vapor Compression vs. Multiple-Effect Distillation
Pharmaceutical waters are classified according to the risk associated with their use in drug manufacture. Both the Chinese Pharmacopoeia and GMP give clear guidance on which grade of water must be used for each manufacturing step. Water-for-Injection (WFI) is employed to prepare parenteral and ophthalmic products, to perform final rinses of containers, for the purification of sterile APIs, for compounding sterile drug products, and for the final wash of packaging materials and equipment that contact the product. In short, any high-risk, aseptic operation requires WFI so that microbiological and endotoxin contamination is avoided. This article focuses on the manufacturing technologies used to produce WFI.

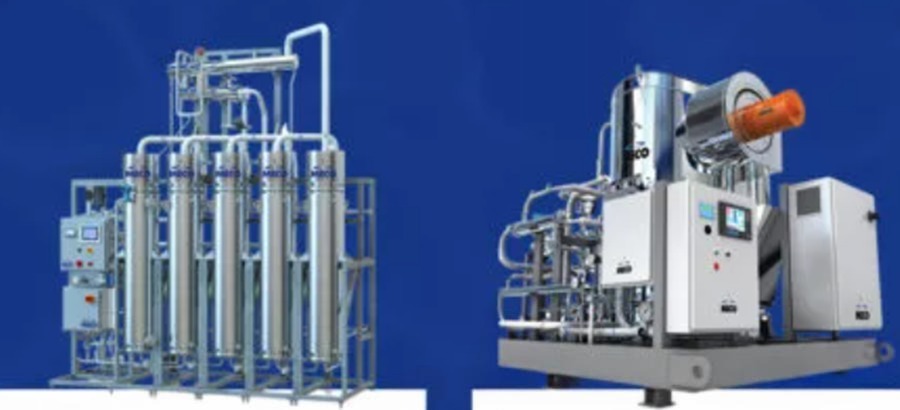

There are several ways to produce WFI in bulk. The two most common thermal methods are Vapor Compression (VC) distillation and Multiple-Effect Distillation (MED). Both can generate WFI that meets pharmacopoeial requirements, but they differ markedly in operating principle, energy efficiency and system complexity. A third, membrane-based (UF) route is now accepted by regulators in the EU, US and China, but is not discussed here.

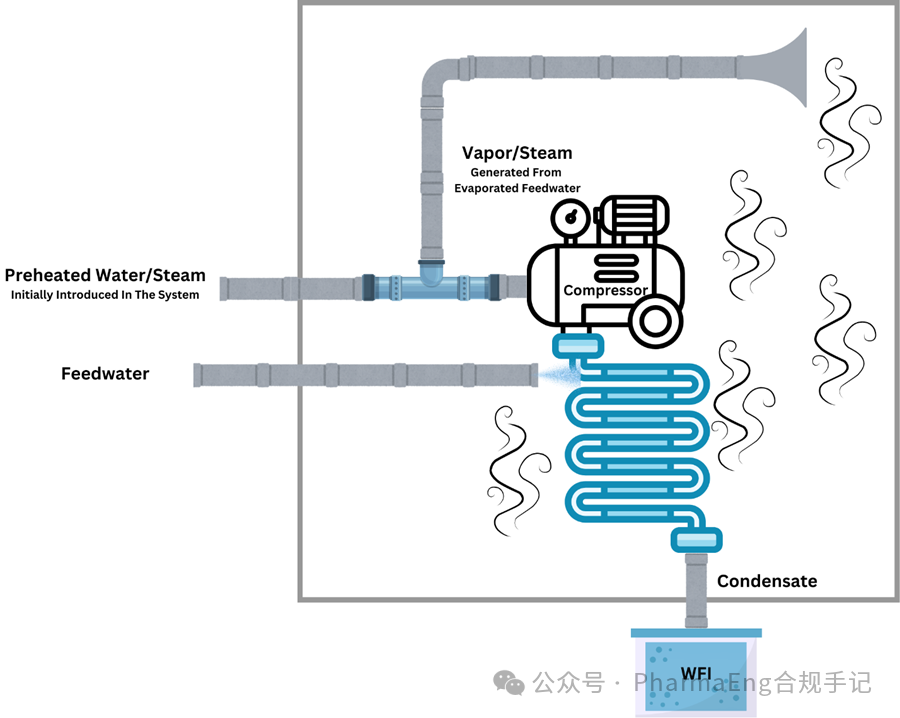

The VC concept was first developed for seawater desalination. Feed-water is boiled in an evaporator; the resulting steam is compressed and then condensed to form WFI. Before entering the evaporator, the steam is pre-heated and decarbonated to remove CO₂, O₂ and other dissolved gases, reducing corrosion and conductivity.
The thermal efficiency of VC comes from the recovery of latent heat, eliminating the need for a separate condenser and cooling water. Steam leaving the evaporator is ducted to a demister to remove entrained droplets containing solids. Pure steam condenses on the outside of the tubes, collects at the bottom of the tube-sheet and is pumped through one or more shell-and-tube heat exchangers. Feed-water is pre-heated in these exchangers before entering the evaporator. The distillate is finally cooled to the required WFI temperature. VC units can produce hot or ambient WFI without additional cooling water.

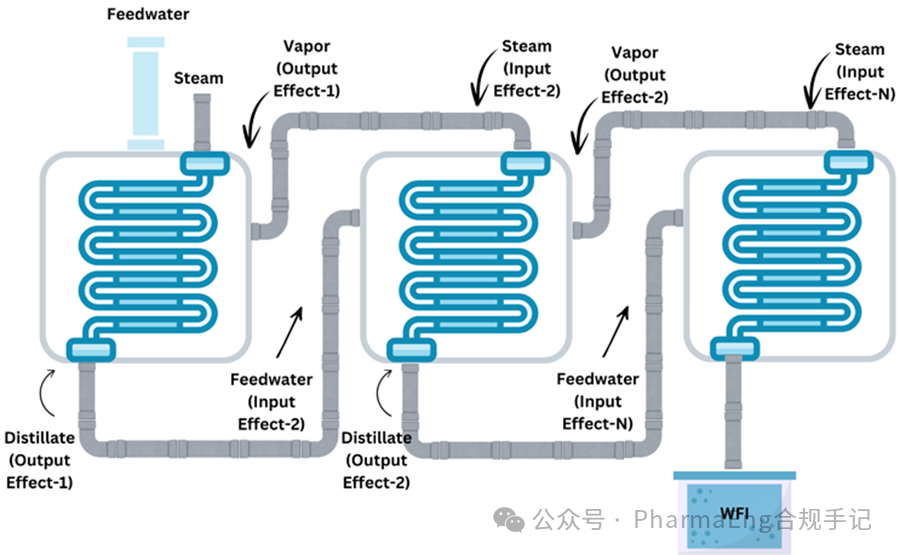

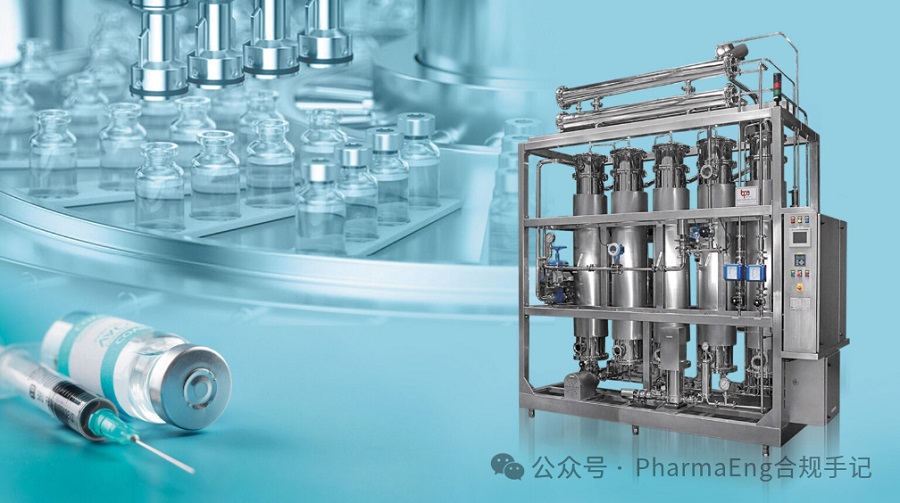

In MED, the word “multiple” refers to the series of “effects” (usually 3–8) through which the water passes. Plant steam is sent to the first effect to heat the water and generate pure steam. Each effect is a pressure vessel resembling a shell-and-tube heat exchanger with an extended head for steam separation. The process relies on natural circulation (or rising-film design): feed-water rises inside the tubes while plant steam is introduced on the shell side. The first effect operates at 4–5 bar; steam condenses on the outside of the tubes, transferring heat to the water inside and generating more pure steam. Steam from the last effect is condensed by the incoming feed-water, which simultaneously pre-heats. A separate condenser and cooling water are required to condense the remaining steam and cool the distillate to the specified temperature.
MED operates at higher temperature and pressure than VC and therefore needs better feed-water quality. Each effect contributes to the final WFI quality while blow-down limits scaling. The condensate from the last (coldest) effect is collected and pumped to the WFI storage tank.
Both technologies produce WFI that meets pharmacopoeial specifications, achieving 100 % microbial kill and endotoxin control by operating at self-sterilising temperatures. With proper pre-treatment, either system can satisfy the relevant monographs. VC can produce ambient WFI without cooling water, whereas MED can simultaneously supply pure steam. The best choice depends on required volume and mode of operation.
·Lower operating temperature ⇒ higher tolerance to chlorides and silica, hence only softening may be required (MED usually needs RO and dechlorination).
·Thermal efficiency reduces plant steam and cooling-water consumption; no separate condenser is needed.
·Can produce hot or cold WFI without cooling water; with additional trim-coolers, WFI can be delivered at ~25 °C above feed temperature.
·Smaller footprint than MED.
·Lower overall operating cost due to heat recycling and minimal pre-treatment.
·Ideal for smaller WFI systems.
·Can produce both WFI and pure steam simultaneously – useful when both are needed.
·No compressor ⇒ lower electricity consumption and maintenance.
·Modular design allows sizing to demand; small 3-effect units require lower capital outlay.
·Stable water quality; multiple effects improve efficiency by reducing utility consumption.
·Fewer moving parts than VC.
Key factors are feed-water quality, capacity, utility costs and infrastructure. VC has higher capital cost but lower operating cost, especially for cold WFI. The gap narrows for large, multi-effect MED units. VC is more economical for medium-to-large flows, requires less pre-treatment and has a smaller footprint. MED suits smaller flows and facilities that need both WFI and pure steam. Feed-water composition strongly influences pre-treatment choice. A detailed Total Cost of Ownership (CapEx + OpEx) should always be performed.
VC systems are markedly more compact. MED usually requires extensive pre-treatment (RO, EDI, softeners, multimedia and carbon filters), whereas VC can often operate with soft water (multimedia + softener + carbon), although many modern VC systems now also incorporate RO/EDI, reducing this advantage.
WFI quality is governed by Chinese Pharmacopoeia, USP, EP and JP. Both VC and MED consistently meet conductivity, TOC, microbial and endotoxin limits. Output quality depends on system design, operating parameters and pre-treatment reliability rather than on the distillation principle itself.
A rigorous cost analysis (capital + utilities + maintenance) is essential. VC is usually more efficient and cost-effective, particularly when softened feed-water is acceptable, because plant steam and cooling-water demands are low. Adding extra effects to an MED system lowers utility consumption but does not increase WFI output, so utility cost and total ownership cost must be examined carefully. The final selection must consider site-specific factors: utility tariffs, feed-water quality, pre-treatment needs, available space and the simultaneous demand for pure steam. Both technologies satisfy pharmacopoeial WFI quality; the decision should rest on a comprehensive evaluation of all associated costs and constraints.
