Water Treatment — Reverse Osmosis (RO) Technology
Reverse Osmosis (RO) Process is widely used in pharmaceutical water treatment systems and is a key process in producing purified water and water for injection according to pharmacopeia standards.
Through a technical exchange with a client, we aim to deepen your understanding of reverse osmosis (RO), its principles, and the recovery rate of RO processes.

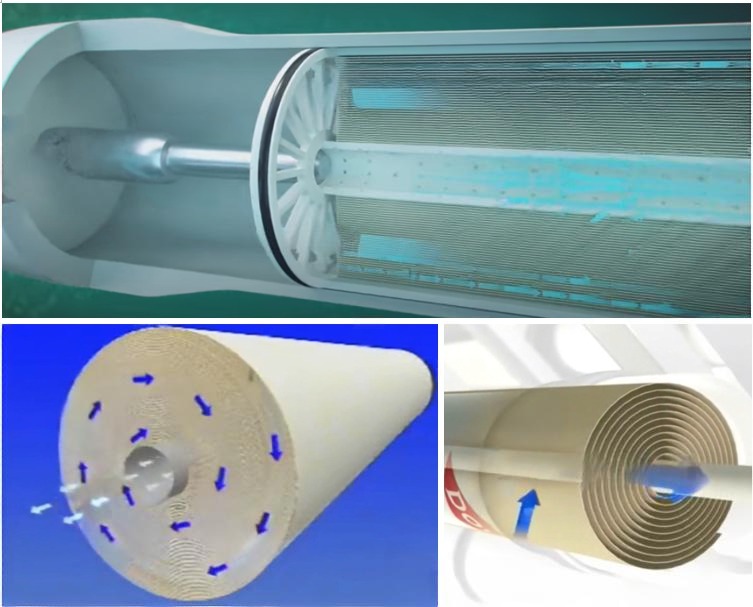

A reverse osmosis membrane is a semi-permeable barrier that allows certain substances to pass through while blocking others. It is a critical component of the RO process, which purifies water by removing dissolved solids, bacteria, viruses, and other contaminants. The semi-permeable nature of the membrane means it allows water molecules to pass through while blocking larger molecules and ions. This selective permeability is what makes the RO process so effective in water purification.

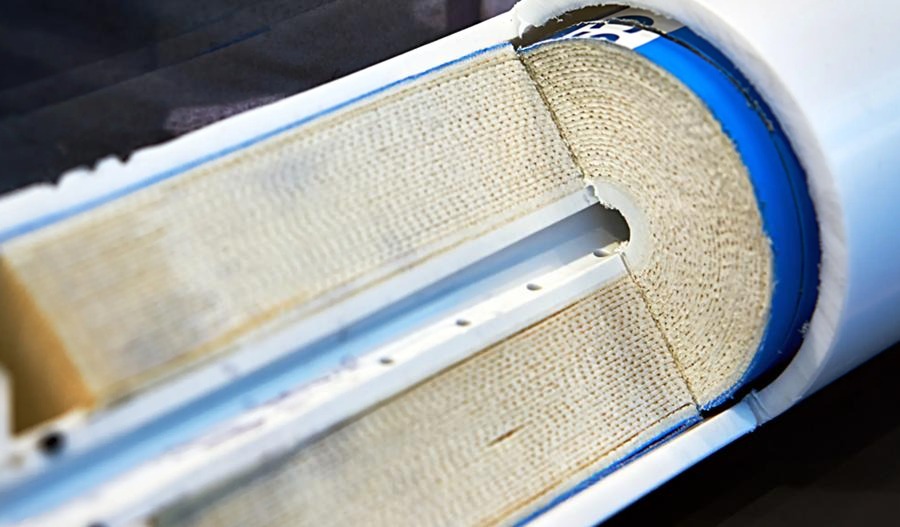

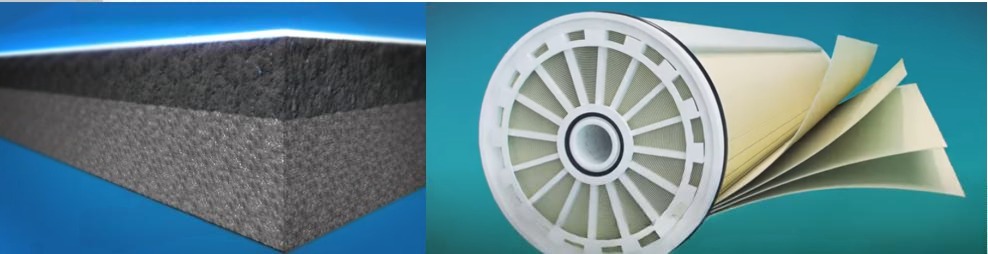

RO membranes used in industrial applications are typically made of three layers of polymer materials: non-woven fabric, a polysulfone layer, and a desalination layer.
Reverse osmosis is a water purification technology that uses a semi-permeable membrane to remove impurities from water. It is based on the principle of osmosis. The principle of reverse osmosis (RO) is to use pressure to reverse the natural process of osmosis. Osmosis refers to the movement of water molecules through a semi-permeable membrane from an area of lower solute concentration to an area of higher solute concentration. In reverse osmosis, pressure is applied to the side with the higher solute concentration, forcing water molecules to move in the opposite direction—from the higher concentration side to the lower concentration side. This process allows the semi-permeable membrane to effectively remove impurities and contaminants, resulting in purified water on the other side of the membrane.

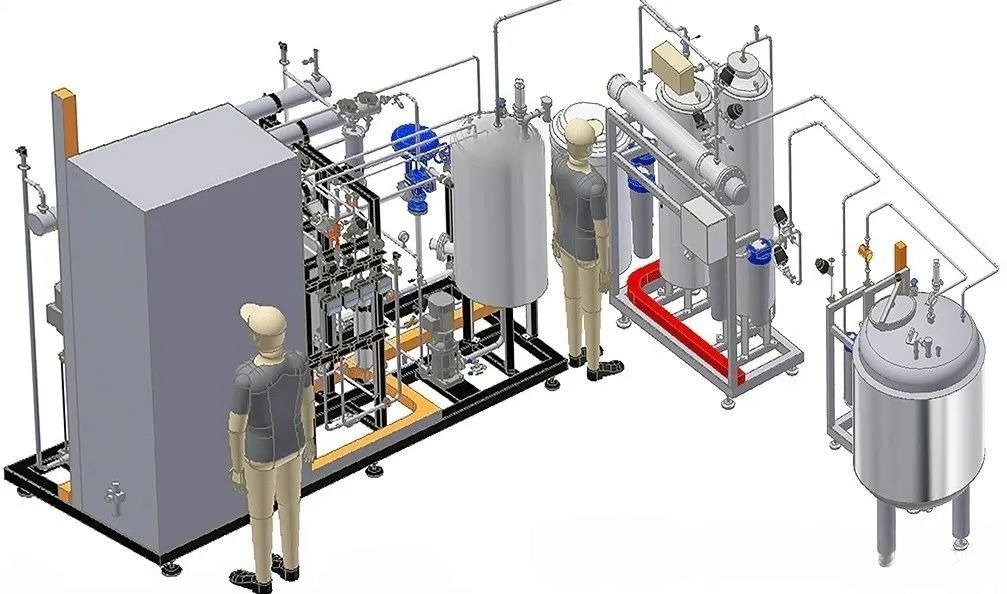

A reverse osmosis system consists of multiple filtration stages to ensure effective purification. The process typically includes pre-filtration, membrane filtration, and post-filtration. During pre-filtration, sediments and larger particles are removed to protect the membrane. The water then passes through the semi-permeable membrane, where dissolved solids, chemicals, bacteria, viruses, and other contaminants are trapped and separated from the purified water.
The recovery rate refers to the ratio of purified water produced by the RO system to the feed water it processes. It is a key parameter in determining the efficiency of the RO process. A higher recovery rate means a greater proportion of feed water is converted into purified water, while the remainder is discharged as concentrate. Achieving an optimal recovery rate is essential to balance water conservation and system performance. First, it helps conserve water and reduce waste. Second, it affects the system's efficiency and its ability to effectively remove impurities. A low recovery rate may result in a higher concentration of impurities in the concentrate, reducing the overall quality of the purified water. Therefore, it is crucial to design and operate RO systems with an optimal recovery rate tailored to specific water quality requirements and intended applications.
