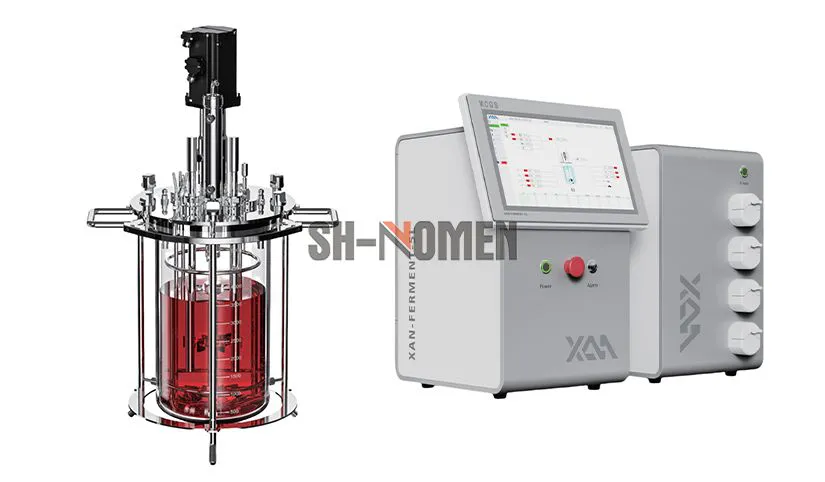

Quadruple Controller Glass Bioreactor
XAN Laboratory scale bioreactor
Due to its reliability, flexibility (modular design), powerful controller, simple operation, easy upgrade, low linvestment and other characteristics, XAN laboratory scale bioreactor is favored by the majority of users, support for various types of custom, complete function, easy process scale-up, is the best choice for animal cell culture and microbial fermentation research and development projects.
| Lab-scale biological process control systems | |
| Bioreactor | Glass tank + Control |
| Software | Dataswitch control. Other data switches are optional |
| Sep | 2L 13L 15L 17L 110L 115L, or customization |
| Paddle | Flat blade propeller, pitched blade propeller、A315 propeller, Elephant ear paddle... |
| Mix Speed | 0-1500 Revolutions per minute |
| Temperature control | Temperature value online detection, PiD intelligent control, can be set according to the fermentation process required temperature; Insulation blanket electric heating, cooling water double temperature control; |
| Temperature range | 10-60℃ (when indoor temperature is 25℃) |
| Peristaltic pump | 4 peristaltic pumps are standard (Optional) |
| Replenishment rate | 0.3-9.5 mL/h to 13-420 mL/h (Depending on tube diameter) |
| Air Flow Control | TMFC; Surface or bottom ventilation TMFC |
| Standard gas mixture | Air, N₂ and/or CO₂ Air, N₂. O₂ and/or CO₂ |
| Standard gas flow rate | 0.04-5 sL/h. 0.04-3.5 sL/h CO₂ 0.2-25 sL/h, 0.2-18 sL/h CO₂ |
| PH value control | CO₂/Alkali & Other setting acid |
| Do control | Cascade (oxygen concentration, gas flow rate) and other Settings Cascade (stirring speed, oxygen concentration, gas flow rate) and other Settings |
| Exhaust gas condensation | Exhaust line equipped with reflux condenser |
| Exhaust gas analysis | Optional (Blue In one) |
QUADRUPLE CONTROLLER
IFeeding system, sampler, various types of stirring paddle, rehydration bottle, heat exchanger, baffle and others, etc.,can be added or decreased at any time according to the needs of users, including various functional modules to meet Ithe specific needs of customers: such as animal cell culture can be equipped with low shear force stirring slurry, etc.
15 inch computer control system, easy to operate
Three-level password protection, can increase or decrease user operation rights, allowing up to 21 operators to use at the same time
Use a carbon-free brush motor to reduce maintenance
Built-in RedoxSensor connector, excluding RedoxSensor
The controller can be extended to 16 control loops
Pre-set for different culture processes to quickly achieve repeated setting operations
Controller adaptive PID control
Automatic adjustment of PID Settings can optimize the control of pH,dissolved oxygen temperature and other parameters with overheating protection function, temperature control can set alarm and interlock
Totalgasfow function to maintain constant total ventilation during culture
Avoid excessive shear force damage to cells
Can connecta variety of electrodes,dentify electrode infomation,Integrated into the LIMS system
OPTION 01
Up to 6 mass flow meters (MFC)
OPTION 02
Additional connections such as:Biomass, balance, gas analyzer, variable s peed pump, etc
Different control modules can be added or decreased according to customer requirements
OPTION 03
Biomass cell density module
To realize the online measurement of cell density and feed-back and other operations
OPTION 04
Feed control the balance and feed pump are associated with PID control to achieve accurate feed
OPTION 05
Supports one-click start, one-click modify and other functions
OPTION 06
Animal cell culture can be configured, Low shear force mixing slurry, gas selection module (Switching gas flow overlay or sparger) Rotary filter /BioSep audio perfusion device, etc
SOFTWARE
The software's functions include control, data analysis and batch reporting, and the combination of Nomen Pharma LIMS software and XAN biorereactor provides an effective solution for cross-platform data analysis, enabling the monitoring of biological processes. Users are provided with a unique system for verifiable rapid development and basic research.
NO.01
Effective Planning, Preparation, Execution and Evaluation;
NO.02
All data can be integrated into a unified database on a single platfom for management;
NO.03
Record and prooess control with data provided by other reactors and analytical equipment, such as Nova Bioprofie biochemicalanalyzer,Hamitoncell oncentration analyzer, balance,feed pump,other PLC controlers;
NO.04
Genericand user-oriented data analysis and reporting;
NO.05
Can be used with LIMS software solutions to support process development following a design quality (ObD) approach by providing comprehensive information management, third-party analyzer integration, design of experiments (DOE) tools, and remote access.
LIMS contains all the functions for retrieving, rendering, and exporting data from (XAN) devices. If more functions are needed later, the software can be upgraded, LMS stored data;

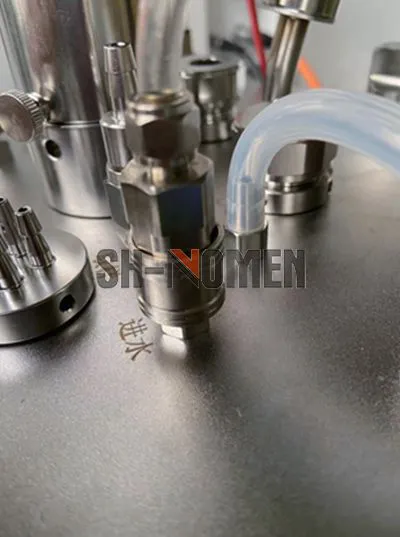

Self-locking air and water interface

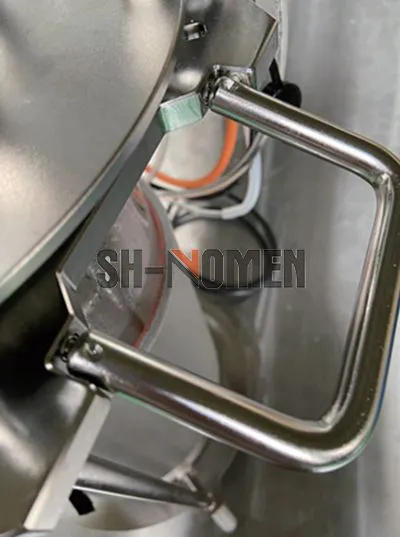

Movable Handle

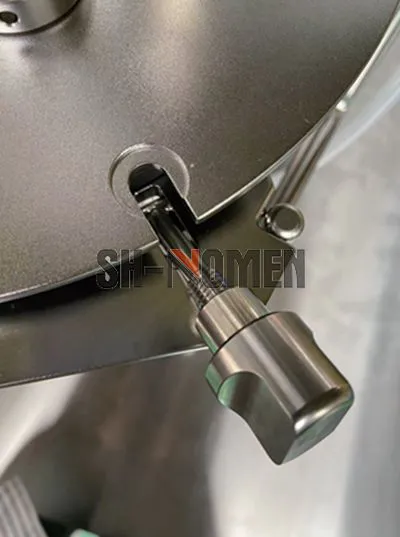

Hand locking nut non-separated device
Glass Bioreactors
