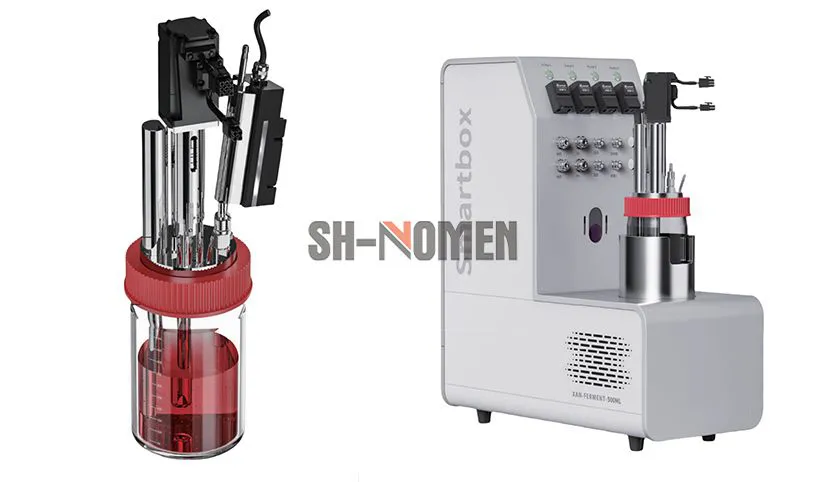

Smartbox Glass Tank Bioreactor (High Throughput Microbioreactor)

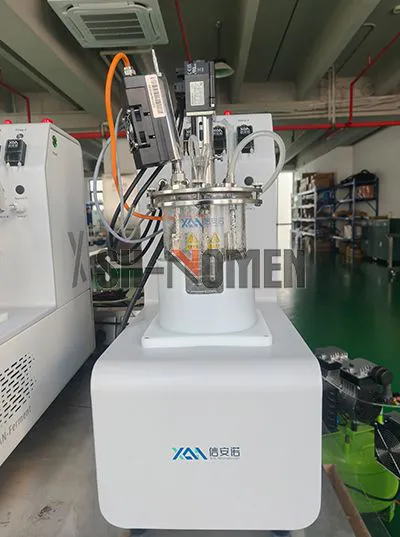

XAN Laboratory scale bioreactor
Because of its reliability, flexibility (modular design), powerful controller functions, simple operation, easy upgrade, low investment, and other characteristics, the XAN Laboratory Glass Bioreactor System is favored by the majority of users. It includes all kinds of Smartbox configurations and can also be fully customized. What is more, the Smartbox series of parallel bioreactors are fully functional and easy to scale up, making this Laboratory Glass Bioreactor System the best choice for animal cell culture and microbial fermentation research and development projects.
| Smartbox micro-parallel bioreactor system for cell culture/ Smartbox micro-parallel bioreactor system for microbiology | |

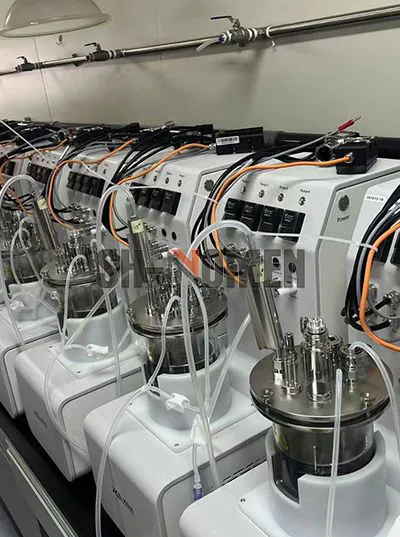

| Parallel bioreactor | Free combination |
| Software | Host computer control, other data host computer can be selected |
| Sep | 500ml、1L、1.5L、2L |
| Paddle | Flat blade propeller, pitched blade propeller, A315 propeller, Elephant ear paddle. |
| Mix Speed | 0-1500 Revolutions per minute |
| Temperature control | Temperature control without water (Peltier) |
| Temperature range | 10-60°C (when indoor temperature is 25°C) |
| Peristaltic pump | 4 peristaltic pumps are standard (Optional) |
| Replenishment rate | 0.3-9.5 mL/h to 13-420 mL/h (Depending on tube diameter) |
| Air Flow Control | TMFC; Surface or bottom ventilation TMFC |
| Standard gas mixture | Air, N₂, O₂ and/or CO₂ |
| Standard gas flow rate | 0.04-5 sL/h, 0.04-3.5 sL/h CO₂ 0.2-25 sL/h, 0.2-18 sL/h CO₂ |
| PH value control | CO₂ / Alkali & Other setting acid Cascade (oxygen concentration, gas flow rate) and other Settings |
| Do control | Cascade (stirring speed, oxygen concentration, gas flow rate) and other Settings |
| Exhaust gas condensation | Without liquid (Peltier heating) |
| Exhaust gas analysis | Optional (Blue In one) |
XAN SMARTBOX
Feeding systems, samplers, various types of mixing paddles, rehydration bottles, heat exchangers, baffles and others can be added or removed at any time according to user needs, including various functional modules to meet customer specific needs: such as animal cell culture can be configured with low shear force mixing slurry.
23.8 inch computer control system, easy to operate
Three-level password protection, can increase or decrease user operation rights, allowing up to 21 operators to use at the same time
Use a carbon-free brush motor to reduce maintenance
Built-in RedoxSensor connector, excluding RedoxSensor
The controller can be extended to 16 control loops
Pre-set for different culture processes to quickly achieve repeated setting operations
Smartbox Controller adaptive PID control
Automatic adjustment of PID Settings can optimize the control of pH, dissolved oxygen temperature and other parameters with overheating protection function, temperature control can set alarm and interlock
Totalgasflow function to maintain constant total ventilation during culture
Avoid excessive shear force damage to cells
Can connect a variety of electrodes, identify electrode information, integrated into the LIMS system
OPTION 01
Up to 6 mass flow meters (MFC)
OPTION 02
Additional connections such as Biomass,balances, gas analyzers, variable speed pumps, etc. can be increased or decreased according to customer needs
OPTION 03
Biomass cell density module
The on-line measurement of cell density and feed-back feeding are realized
OPTION 04
Feed control the balance and feed pump are associated with PID control to achieve accurate feed
OPTION 05
New LIMS software, batch reports, process analysis, one-click start, opinion modification, etc
OPTION 06
Animal cell culture can be configured
Low shear force mixing slurry, gas selection module
(Switching gas flow overlay or sparger)
Rotary filter /BioSep acoustic analysis, one-click start, opinion modification, etc frequency perfusion device, etc

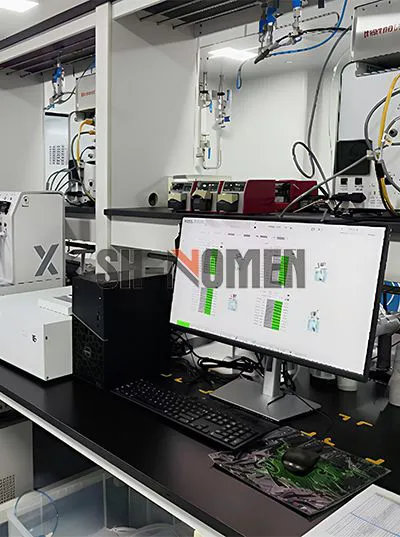

LMS SOFTWARE
The functions of the software incude reactor parallel experiments, SCADA, data analysis and batch reporting, and the combination of Nomen Pharma LMS software and XAN biorereactor can monitor the biological process flow, which is an effective solution for cross-platform data analysis.
NO.01
Effective Planning, Preparation, Execution and Evaluation;
NO.02
All data can be integrated into a unified database on a single platfom for management;
NO.03
Record and prooess control with data provided by other reactors and analytical equipment, such as Nova Bioprofie biochemicalanalyzer,Hamitoncell oncentration analyzer, balance,feed pump,otherPLCoontrolers;
NO.04
Genericand user-oriented data analysis and reporting;
NO.05
Ideal for parallel processing. Togetherwith the LIMS software solution, Smartbox supports process development following the Quality of Design (ObD) approach by providing comprehensive information management, third-party analyzer integration, Design ofexperiments (DOE) tools, and remote access.
ILIMS contains all the functions for retrieving, rendering, and exporting data from (XAN) devices.
